Examples

Both live under examples/ in the repository, and both run through transport-io dev, which mints the certificate. Chrome or Firefox for both.

chat

Section titled “chat”

examples/chat. Two pages against one server, with no framework: the library with nothing in front of it.

/ puts both lanes on one screen: chat on the reliable lane, cursors on the unreliable one, a name assigned by a call, /say some words streaming the reply a word at a time, and a slider that makes the server drop a share of your cursor frames so the other window watches the unreliable lane lose them while chat arrives one for one.

/agents.html runs two streaming calls at once and lets you stop either one. Stopping one resets its QUIC stream: the server’s generator ends where it stood, and the other stream does not lose a token.

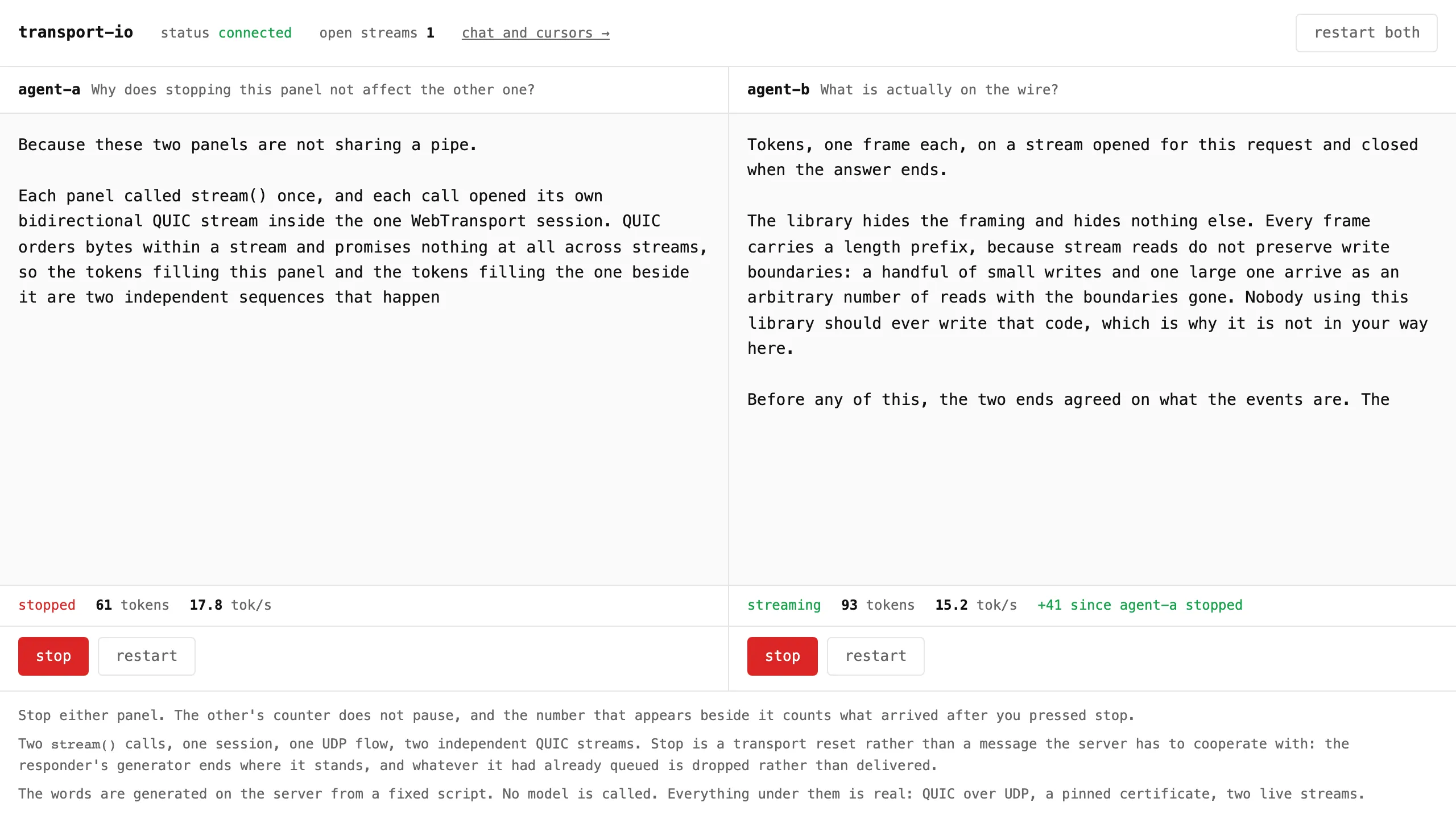

Two panels streaming tokens at once, one of them stopped, the other still counting

Served from your own machine, both pages mount the devtools panel: the button in the corner opens it, and every frame, stream and drop shows up in it. On /agents.html its open-streams column has two entries while both agents run.

Terminal window
cd examples/chat
bun run build:web
npx transport-io dev server.node.ts --static web

Open the printed URL in two windows.

  • contract.ts declares the five events and is the only place that says which lane each is on.
  • app.ts holds the handlers, attached to whichever server hosts the contract.
  • server.node.ts is the local server, under the dev command.
  • agents.ts is the fixed script the second page streams. No model is called.
  • web/ is the two pages and their two entry modules, bundled into web/dist/.
  • deploy/ is the design and runbook for running it on a VPS with a real certificate.

react

Section titled “react”

examples/react. The same chat on @transport-io/react, under Vite: the provider, useConnection, useEvent, useCall and useStream, with no state library. The tutorial builds it from an empty directory. The contract’s payloads are zod schemas, so every inbound message is validated on arrival. It has the loss slider too: the server drops a share of your cursor frames, and the other window watches the unreliable lane lose them while chat arrives one for one.

Two terminals:

Terminal window
cd examples/react
npm run server
Terminal window
npm run dev

Open http://localhost:5173 in two windows. Vite proxies /.well-known/transport-io-dev to the server’s port, which is how the page finds the certificate hash. npm run build then npm start serves the built page from the dev command instead.

  • contract.ts is the events, shared by the server and the page.
  • server.node.ts is the server, under the dev command.
  • src/api.ts binds the hooks to the map with createHooks<ChatMap>().
  • src/App.tsx builds the client inside useState and hands it to TransportProvider.
  • src/Chat.tsx is the connection state, the log, the composer with its stream, the received counts, the loss slider, and the cursor surface.
